CNC Press Brake Machine With DA-58T

Main Feature of CNC Press Brake Machine With DA-58T

● Overall welded and processed structure
● Closed loop control mode composed of electric-hydraulic servo valve and measure ruler
● Ensure the highest control precision, bending accuracy and repositioning accuracy are also reachto the highest level
● YONGYA Back gauge mechanism can be multi-axes controlled
● Integrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies
● Worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the work piece, it is automatically adjusted by the CNC controller with convenient and accuracy
● CNC hydraulic press brake’s controller normally uses Holland DELEM, Swiss CYBELEC, all with multi-languages

Standard components

● DELEM DA58T
● 3+1 axis control (Y1, Y2, X+V)
● Grating ruler (Spanish FAGOR)
● Germany BOSCH-REXROTH proportional valve
● Germany BOSCH-REXROTH oil pump
● SIEMENS main motor
● Ball screw & linear guide -Taiwan PMI
● Backgauge positioning system
● Double servo motor & servo drive
● Manual mechanical crowning (below 300T)
● Motorized crowning (above 300T)
● 180° adjustable front support arm with linear guide
● X,Y axis servo motor control
● Fast clamp
● Euro type tooling

Optional

● Wila Hydraulic Clamp (Top & Bottom)
● Main servo motor
● Front light curtain
● Rear light curtain
● Front laser protection
● Air cooling system
● R axis
● Motorized Z axis
● R1, R2 axis
● Z1, Z2 axis
● X1, X2 axis

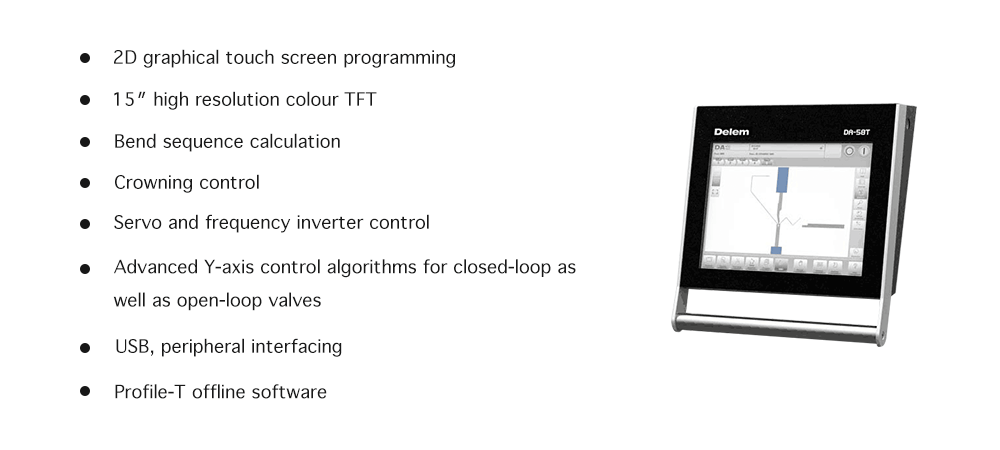

DELEM DA-58T Feature

Technical Parameters of CNC Press Brake Machine
