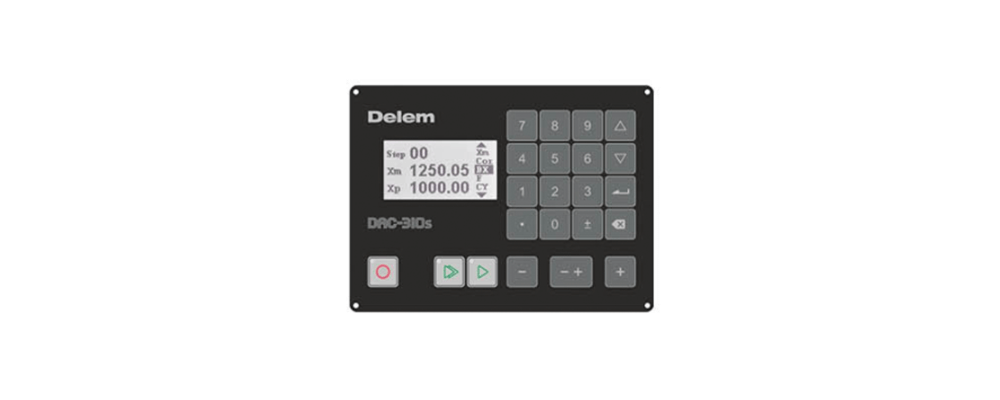

DELEM DAC310S Hydraulic Guillotine Shearing Machine Controllers

DELEM DAC310S Hydraulic Guillotine Shearing Machine Controllers Features

● High-definition LCD display 275*48 pixels
● Backgauge control
● Control of knife edge clearance
● Control of cutting stroke
● The actual position of the back gauge and the programmed value are displayed at the same time
● Cut count
● 100 program steps
● Panel installation
● Servo control / frequency conversion speed control / two-speed AC motor control

Introduction of DELEM DAC310S Hydraulic Guillotine Shearing Machine Controllers

The DAC310S shearing machine numerical control device adopts the latest electronic technology and has the characteristics of compact structure and complete functions. It provides a unique solution for the backgauge, knife edge gap and shearing process control of the shearing machine.

● The backgauge control mode supports servo motor control, frequency conversion speed control, and two-speed AC motor control.
● According to the specific application, the back gauge can choose two-way positioning or choose one-way positioning to eliminate the screw gap.
● The reference point of the back gauge can be set to search automatically after starting up or to remember the position of the back gauge after power off.
● By selecting the move button, select two speeds to manually move the back gauge.
● High-definition LCD display provides clear, fast and simple programming convenience. The actual position value and the programmed value of the backgauge are displayed at the same time, and the option function of program counting can also be displayed at the same time. Each program step provides settings such as work cloth link, escape distance, repeat count, etc.
