WC67K NC Hydraulic Press Brake Machine With DA-41S

CATEGORY AND TAGS:
Press Brake hydraulic press brake

● Multilingual interface
● bending angle programming
● DA-41S for X and Y axis control
Control axes: Upper ram(Y-axis), Back gauge (X-axis).
Capabilities: 30T/1600 - 600T/6000

enquiry

Specifications

WC67K NC Hydraulic Press Brake Machine’s Main Feature

● Whole steel welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity,Torsion bar with hydraulics
● Integrated hydraulic system, upper transmission, pressure control for adjustment of tonnage
● Removement foot-pedal switch and emergency stop button
● Segmented upper punch, multi-V die
● Back gauge and upper ram travel automatic control, micro adjustment by manual and digital displayer
● Oblique steel solid deflection compensation device is adopted for upper punch
● International standard electrics and switches
● Can equip kinds of NC controllers: Estun E21/E300P, Delem DA41,CT8
● Control axes: Upper ram(Y-axis), Back gauge (X-axis)

Standard components

● DELEM DA41S control
● Siemens motor
● German BOSCH-REXROTH hydraulic system
● USA Sunny oil pump
● EMB pipe connector
● HIWIN ball screw & guide rail (backgauge)
● Schneider electrics
● Fast clamp
● Servo motor and driver
● Y, X axis
● Multi-V dies
● Foot pedal with emergency stop button
● Side and back safety gates

Optional

● Front light curtain
● Rear light curtain
● Front laser protection
● Movable support arm with linear guide
● Air cooling system

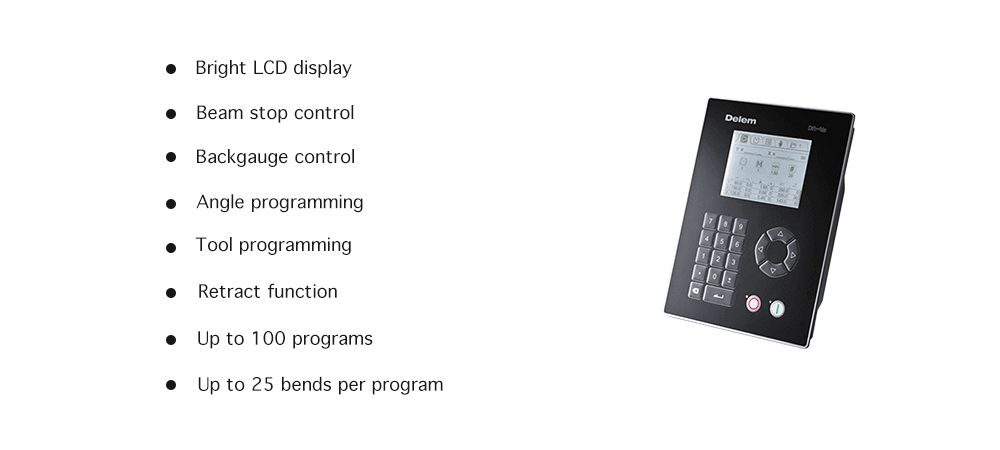

DELEM DA-41S Feature

Technical Parameters of NC Hydraulic Press Brake Machine

Model	Bending Pressure(kn)	Bendling Length（mm)	Vertical Column Distance (mm)	Throat Depth(mm)	Slider Stroke(mm)	Max. opening Height(mm)	X-axis Max. Distance(mm)	LengthWidthHeight(mm)	Weight(T)
30T/1600	300	1600	950	230	100	320	300	180012001620	2000
40T/1600	400	1600	950	230	100	320	300	180012001820	2500
40T/2200	400	2200	1850	230	100	320	500	220012001900	2750
40T/2500	400	2500	1850	230	100	320	500	250012001900	3000
50T/2500	500	2500	1850	230	100	320	500	250012002000	3400
63T/2500	630	2500	1900	250	100	320	500	250013002210	4000
63T/3200	630	3200	2560	250	100	320	500	320013002210	4800
80T/2500	800	2500	1990	300	100	320	500	250014002300	5000
80T/3200	800	3200	2560	320	100	350	500	320015002300	6000
80T/4000	800	4000	3200	320	100	350	500	400015002400	7000
100T/2500	1000	2500	1990	320	120	350	500	250016002400	6000
100T/3200	1000	3200	2600	320	150	400	500	320016002600	6800
100T/4000	1000	4000	3200	320	150	400	500	400016002600	8000
125T/3200	1250	3200	2600	320	150	400	500	320016002600	7000
125T/4000	1250	4000	3200	320	150	400	500	400016002600	8500
160T/3200	1600	3200	2580	320	200	460	500	320017002700	10000
160T/4000	1600	4000	2900	320	200	460	500	400017002800	11000
160T/5000	1600	5000	3900	320	200	460	500	500019003100	13500
160T/6000	1600	6000	4900	320	200	460	500	630019003200	18500
200T/3200	2000	3200	2480	320	200	460	500	320019502800	11000
200T/4000	2000	4000	2900	320	200	460	500	400019502800	12500
200T/5000	2000	5000	3900	320	200	460	500	500019503000	14000
200T/6000	2000	6000	4900	320	200	460	500	600019503300	20000
250T/3200	2500	3200	2450	400	250	590	500	325020003200	18500
250T/4000	2500	4000	2900	400	250	590	500	400020003400	20000
250T/5000	2500	5000	3900	400	250	590	500	500020003400	23000
250T/6000	2500	6000	4900	400	250	590	500	600020003400	27000
300T/3200	3000	3200	2450	400	250	590	500	320020003450	20500
300T/4000	3000	4000	2900	400	250	590	500	400020003450	22000
300T/5000	3000	5000	3900	400	250	590	500	500020003450	25000
300T/6000	3000	6000	4900	400	250	590	500	600020003450	28500
400T/3200	4000	3200	2400	400	250	590	500	320021803400	22500
400T/4000	4000	4000	2900	400	250	590	500	400021803400	25000
400T/5000	4000	5000	3900	400	250	590	500	500021803500	29000
400T/6000	4000	6000	4900	400	250	590	500	600021803800	34000
500T/5000	5000	5000	3900	400	250	590	500	505035003700	42000
500T/6000	5000	6000	4900	400	320	590	500	605035003700	54000
600T/4000	6000	4000	2900	400	320	590	500	405045003700	44000
600T/6000	6000	6000	4900	400	320	590	500	605045003700	60000
