QC12K series Hydraulic Swing Beam Shearing Machine
NC 4 x 2500mm with E21S Controller
enquiry●Unipivot support, lever principle
●Do arc-shaped curvilinear motion around the rear fulcrum
●Hydraulic oil cylinder fixed in an oblique direction
●Easy installation and training is required
●75% acting force, 25% loss
●Fixed cutting angle and blade carrier angle
●Low maintenance hence convenient
●Hydraulic and electrical systems involved are simple for servicing purposes
●Ergonomic design
●The economical solution to cut sheet metal

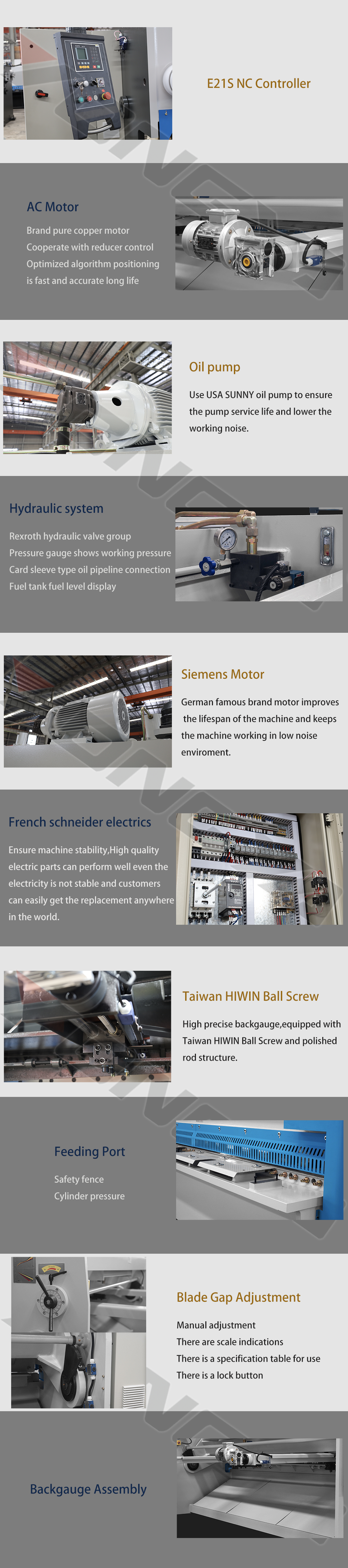

●Hydraulic Value: Germany Bosch Rexroth
●Electrics: Schneider
●Oil Pump: Sunny
●Oil Cylinder: Made in China
●Main Motor: Germany Siemens
●Ball Screw Rod: HIWIN
●Linear Guide: HIWIN
●Tube connector: Germany EMB
●Front Support: Normal Type
●Back Support: Support Plate
●Line Alignment Device:Light
●Front Fence: Sheet Metal Type
●Rear Protection: Warning Tape
●Lubrication Device: Manual/Automatic Lubrication Device
●Blade: Standard materials: 9GrSi/6CrW2Si
●Pedal Switch: South Korea KACON
●Controller:ESTUN E21S
●Front Support: Scale Adjustment Support / Angle Adjustment Support
●Rear Protection:Light Curtain Protection/Rear Fence
●Blade:H13
| Type | Max Thickness (mm) | Cutting Length (mm) | Throat Depth (mm) | Shearing Angle (°) | Blade Length (mm) | Back Gauge Specification Travel (mm) | Motor Power (kw) | Weight (kg) | L*W*H (mm) |
| 4×2500 | 4 | 2500 | 100 | 1°30’ | 2600 | 600 | 5.5 | 3800 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 100 | 1°30’ | 3300 | 600 | 5.5 | 5000 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 100 | 1°30’ | 4100 | 600 | 5.5 | 6500 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 100 | 1°30’ | 6100 | 600 | 11 | 11000 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 145 | 1°30’ | 2600 | 600 | 7.5 | 5000 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 145 | 1°30’ | 3300 | 600 | 7.5 | 6000 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 145 | 1°30’ | 4100 | 600 | 7.5 | 8000 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 145 | 1°30’ | 5100 | 600 | 7.5 | 10500 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 145 | 1°30’ | 6100 | 600 | 11 | 16500 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 300 | 1°30’ | 2600 | 600 | 7.5 | 6000 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 300 | 1°30’ | 3300 | 600 | 7.5 | 7200 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 300 | 1°30’ | 4100 | 600 | 7.5 | 8800 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 300 | 1°30’ | 5100 | 600 | 7.5 | 11500 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 300 | 1°30’ | 6100 | 600 | 11 | 18000 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 300 | 1°30’ | 2600 | 600 | 11 | 7300 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 300 | 1°30’ | 3300 | 600 | 11 | 8000 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 300 | 1°30’ | 4100 | 600 | 11 | 12000 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 300 | 2° | 6100 | 600 | 15 | 24000 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 300 | 2° | 2600 | 600 | 18.5 | 9000 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 300 | 2° | 3300 | 600 | 18.5 | 10800 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 300 | 2° | 4100 | 600 | 18.5 | 13000 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 300 | 2° | 5100 | 600 | 18.5 | 16000 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 300 | 2° | 6100 | 600 | 18.5 | 29000 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 300 | 2° | 8100 | 600 | 18.5 | 46500 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 320 | 2°30’ | 2600 | 600 | 18.5 | 11000 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 320 | 2°30’ | 3300 | 600 | 18.5 | 13000 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 320 | 2°30’ | 4100 | 600 | 18.5 | 16300 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 320 | 2°30’ | 5100 | 800 | 18.5 | 20000 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 320 | 2°30’ | 6100 | 800 | 22 | 36000 | 6900*2700*2700 |
| 20×2500 | 20 | 2500 | 320 | 3° | 2600 | 800 | 22 | 15500 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 320 | 3° | 3300 | 800 | 22 | 18000 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 320 | 3° | 4100 | 1000 | 22 | 21000 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 320 | 3° | 2600 | 1000 | 37 | 19000 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 320 | 3° | 3300 | 1000 | 37 | 23000 | 4200*2700*2900 |
| 25×4000 | 25 | 4000 | 320 | 3° | 4100 | 1000 | 37 | 27000 | 3850*2700*2900 |
| 30×2500 | 30 | 2500 | 320 | 3° | 2600 | 1000 | 37 | 23500 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 320 | 3° | 3300 | 1000 | 37 | 27500 | 4200*2900*2900 |
